Sony XM-1ES Amp in Kenya
Elite Power and Hi-Res Precision
The Sony XM-1ES is a flagship Class-D mono amplifier from the Mobile ES series, engineered to deliver uncompromising low-end performance. It provides a massive 1,000W RMS output at 2-ohms (600W RMS at 4-ohms), ensuring your subwoofers receive deep, energetic power with astonishing clarity. The high-efficiency design utilizes optimized power blocks and a DC converter with a toroidal core transformer to minimize electromagnetic interference. Consequently, this amplifier achieves a high signal-to-noise ratio of 100dB, offering a pure, low-noise signal path that captures the intricate details of your music.
Professional Tuning

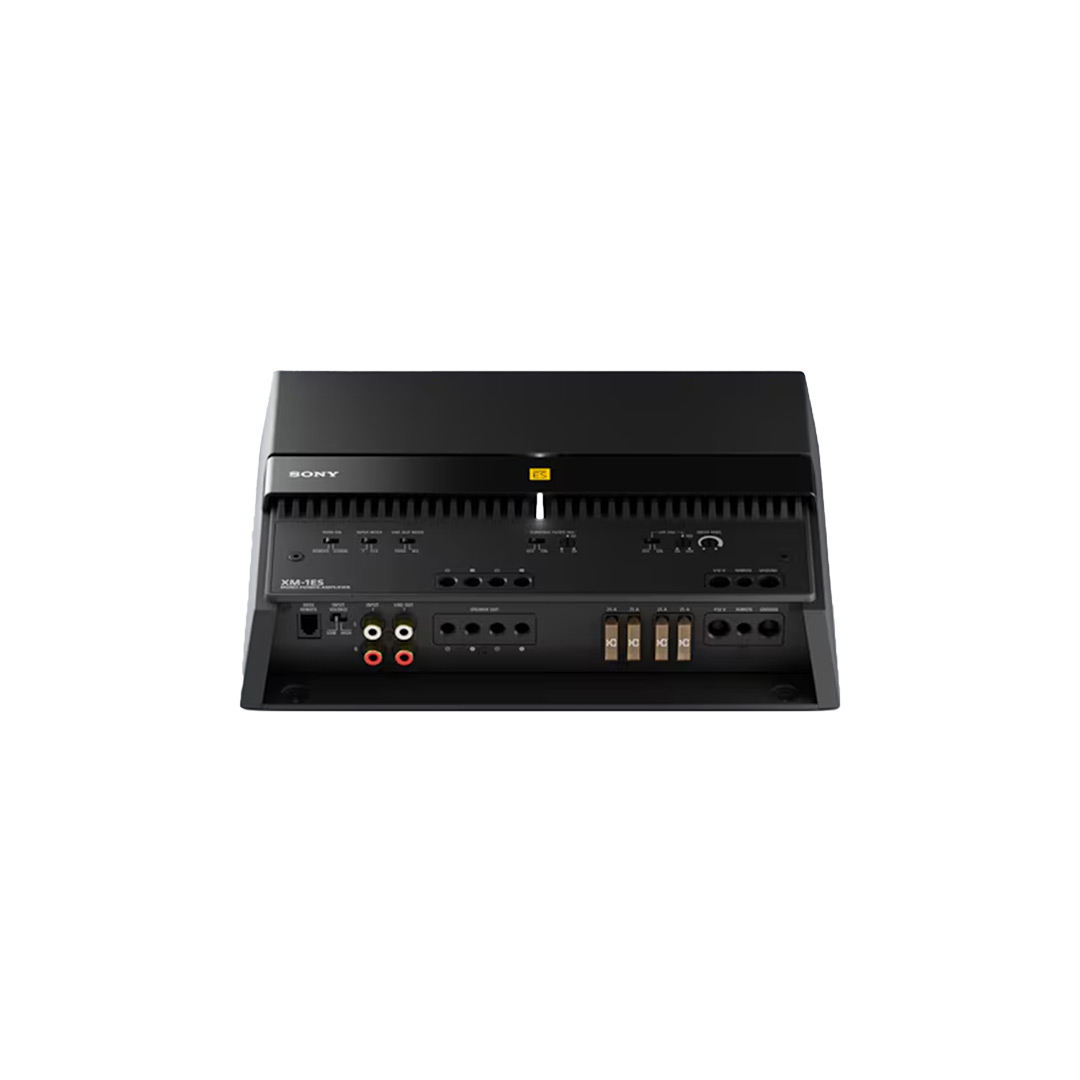

This amplifier features an extensive control panel designed for surgical audio precision. It includes a variable low-pass filter (LPF) and a subsonic filter, both featuring a steep 24dB/octave slope for superior frequency isolation. A unique signal summing feature allows you to combine stereo inputs into a mono signal, making it easy to integrate with complex factory systems. Furthermore, the unit includes a wired remote level control, allowing you to fine-tune the bass impact from the driver’s seat. These tools ensure that your subwoofer integrates seamlessly with your existing speakers, providing a balanced and professional soundstage.
Robust Engineering

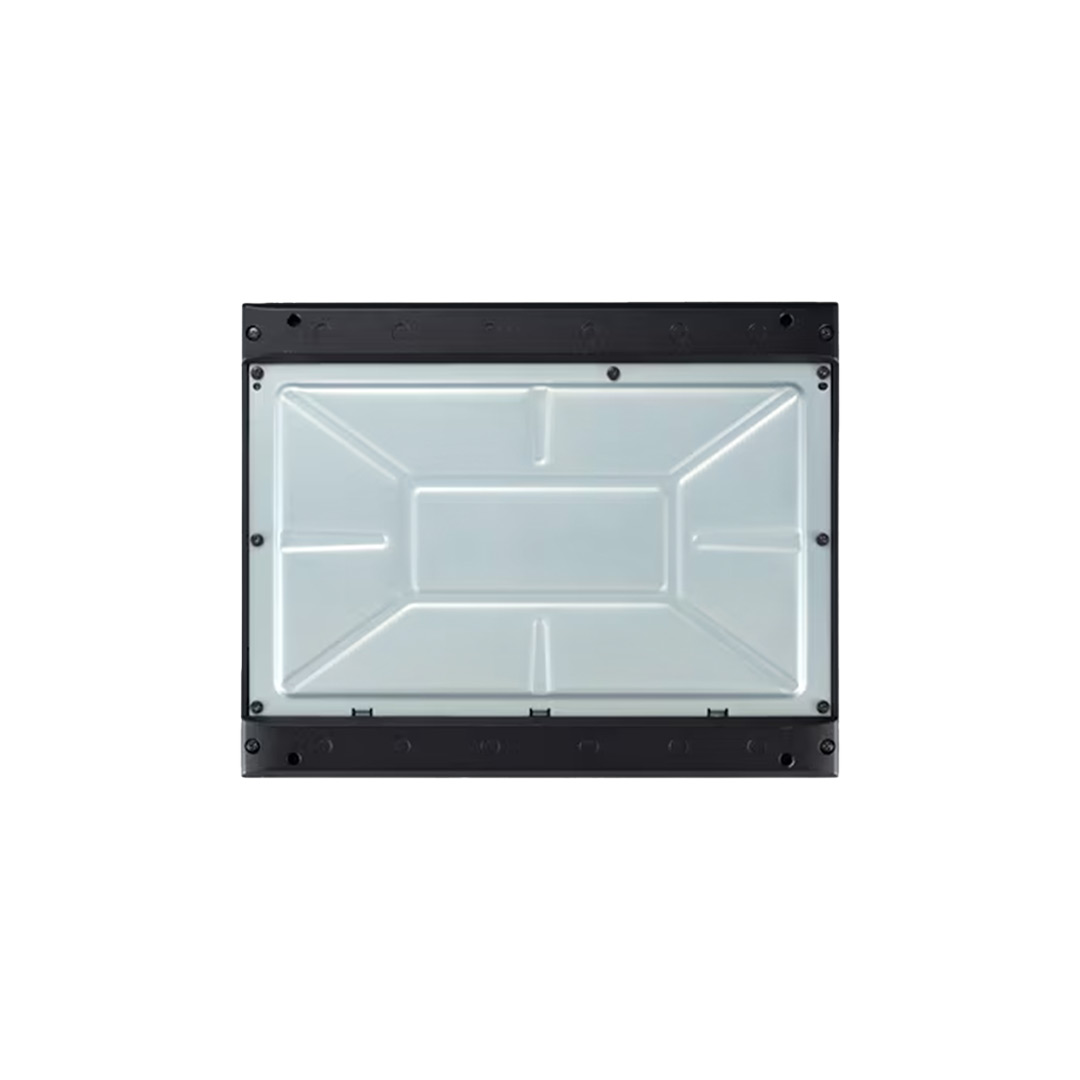

Sony built the Sony XM-1ES with a 1.2mm cross-braced bottom plate that improves chassis rigidity by 50%, effectively shifting resonance away from harsh vehicle vibrations. The high-quality speaker terminals feature Hex-key screws that securely hold up to 8 AWG bare wire for maximum electrical conductivity. It also supports high-level inputs up to 16V, allowing for a direct connection to factory radios without external converters. Ultimately, this XM-1ES Mobile ES component combines rugged durability with the refined sound characteristics required for a high-end audio journey.
Sony XM-1ES Mono Amp Specs
| Category | Features |
|---|---|
| Brand / Model | Sony XM-1ES |
| Series | Mobile ES |
| Amplifier Type | Mono (1-Channel) Amplifier |
| Power Supply | MOSFET Power Supply |
| Maximum Power | 1550 W at 2 Ohm, 1000 W at 4 Ohm |
| RMS Power Output | 1000 W x 1 at 2 Ohm , 600 W x 1 at 4 Ohm (14.4V, 100Hz) |
| Frequency Response | 10 Hz – 500 Hz |
| Low-Pass Filter | Variable 50 – 500 Hz |
| Low-Pass Filter Slope | 24 dB/oct |
| Subsonic Filter | Built-in High-Pass Filter |
| Total Harmonic Distortion | < 0.05% (1 kHz) |
| Speaker Level Input | Yes |
| Connectors | Gold-Plated |
| Dimensions (W x H x D) | 270 x 60 x 215 mm |
Ideal For:
- Powering subwoofers with clean, dedicated power.
- Drivers wanting deeper, stronger bass response.
- Unlocking full performance from installed subwoofers.
- Building a complete, balanced car audio system.
What’s in the box
- Sony 1ES moblock amp.
- Power harness
