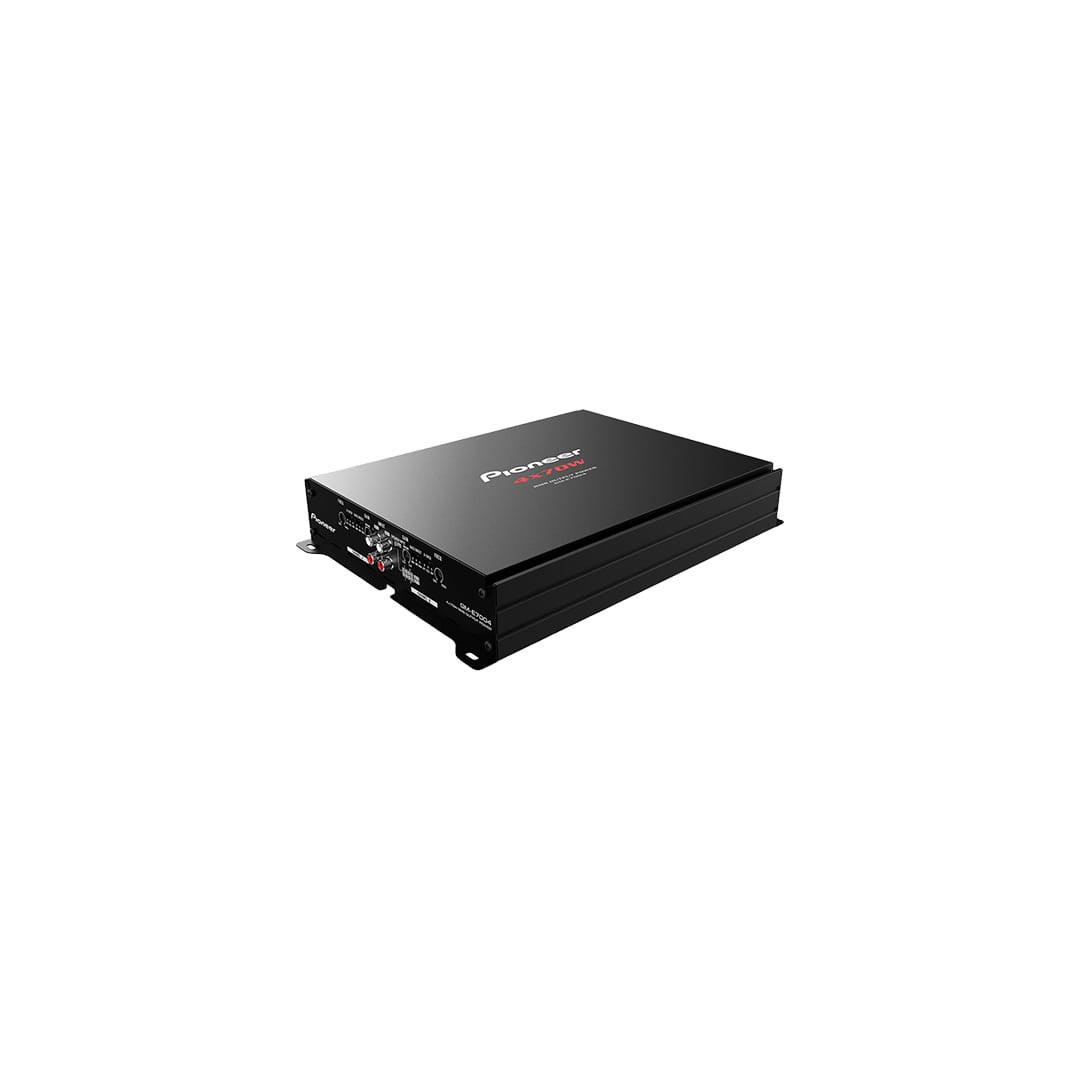

Pioneer GM-E7004 in Kenya
High-Efficiency Performance
The Pioneer GM-E7004 is a versatile 4-channel Class-AB amplifier designed to deliver high-quality sound with a 1,000W maximum power output. This unit provides a steady 70W RMS x 4 at 4-ohms, making it an excellent choice for driving both front and rear cabin speakers. Its bridgeable design adds significant installation flexibility, allowing you to configure the system as a 3-channel setup with 190W RMS dedicated to a subwoofer.
Precision Bass Tuning

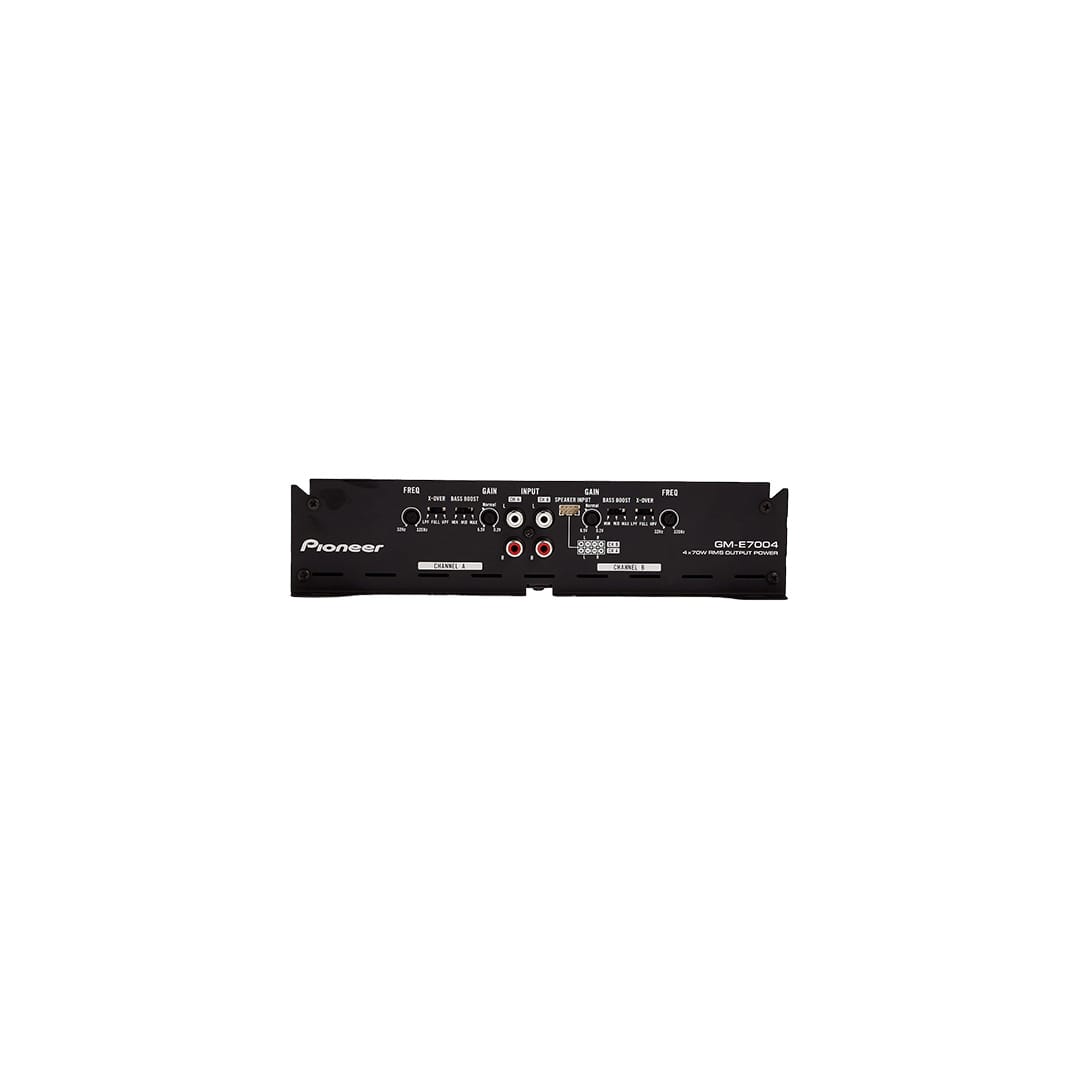

This Pioneer GM-E7004 car audio amplifier features independent variable filters for different channel pairs to ensure optimal performance across all your drivers. Channel A and Channel B both include variable low-pass filters (LPF) adjustable from 32Hz to 320Hz, while the high-pass filter (HPF) on Channel A helps protect smaller speakers from distorting low frequencies. Additionally, a selectable bass boost allows for an increase of 0dB, 6dB, or 12dB at 50Hz on the rear channels. These tuning tools allow you to customize the output to match your musical preferences. Furthermore, the adjustable gain control (0.3V to 6.5V) ensures a clean signal match with almost any factory or aftermarket head unit receiver.
Robust Design

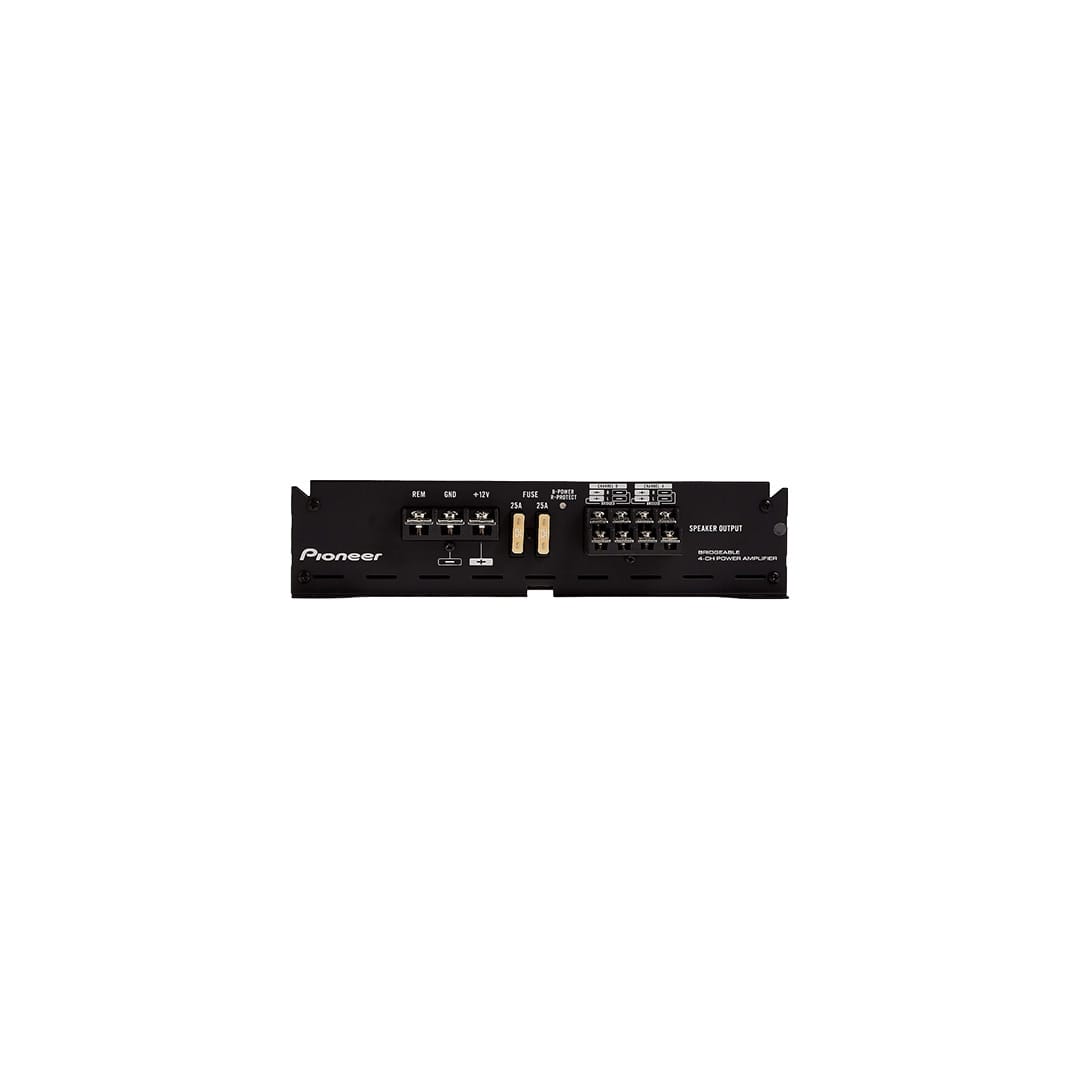

The Pioneer GM-E7004 is built with a heavy-duty aluminum alloy heat sink to provide superior thermal management during long listening sessions. The unit includes both RCA and speaker-level inputs with automatic signal sensing. With a high signal-to-noise ratio of 95dB, this Pioneer-engineered component minimizes background hiss for a pure listening experience. Ultimately, the GM-E7004 combines durable construction with the precise power delivery required for a high-fidelity car audio system.
Pioneer GM-E7004 Specs
| Description | Specification |
|---|---|
| Amplifier Class | Class AB |
| Number of Channels | 4 / 3 / 2 |
| RMS / Nominal Output | 70W x 4 @ 4 Ohm, 95W x 4 @ 2 Ohm, Bridged: 190W x 2 |
| Frequency Response | 15 Hz – 22 kHz |
| Total Harmonic Distortion | < 0.1% |
| Signal-to-Noise Ratio | > 80 dB |
| Speaker-Level Input | Yes |
| Crossover Type | Variable HPF / LPF |
| Crossover Frequency | 32 Hz – 320 Hz |
| Bass Boost Frequency | 50 Hz |
| Bass Boost Level | Min / Mid / Max |
| Dimensions (W × H × D) | 343 x 55.5 x 240 mm |
| Warranty | 12 Months |
Perfect For:
- Powering upgraded front and rear door speakers.
- Achieving louder, cleaner sound with better control.
- Improving overall clarity and listening experience.
- Building a balanced, premium daily-driver sound system.
What’s in your box
- 1 x Pioneer 1000W audio amplifier.
- Bass Control Remote.
- Instruction Manual.
- Warranty Card.
