About the Pioneer TS-W312S4

The Champion Has Returned

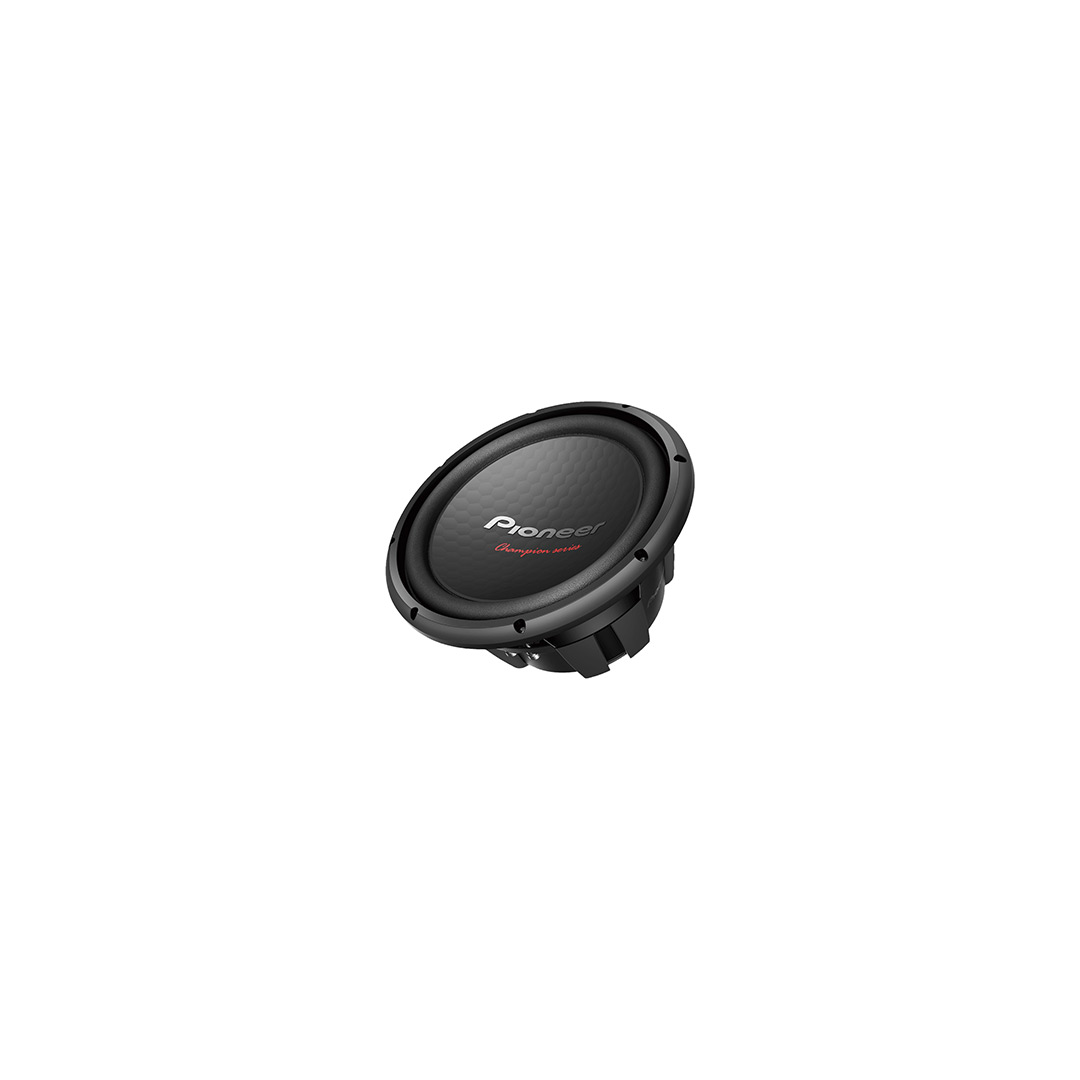

Pioneer TS-W312S4 car subwoofer is the latest “Champion” series sub-woofers. It is designed to take the “Champion” Series name to the next level. The new sub-woofers not only look good but will perform even better. Match with Pioneer’s GM-D Series amp for an impressive in car experience.

High Power Handling and High Endurance

Pioneer TS-W312S4 car subwoofer have dual layer as well as fiber reinforced elastic polymer surround. It has an iconic red spider for precise control and for stable and linear excursion. It’s also equipped with high heat resistance voice coil due to its large magnet with high heat dissipation.

Deeper and Louder Bass

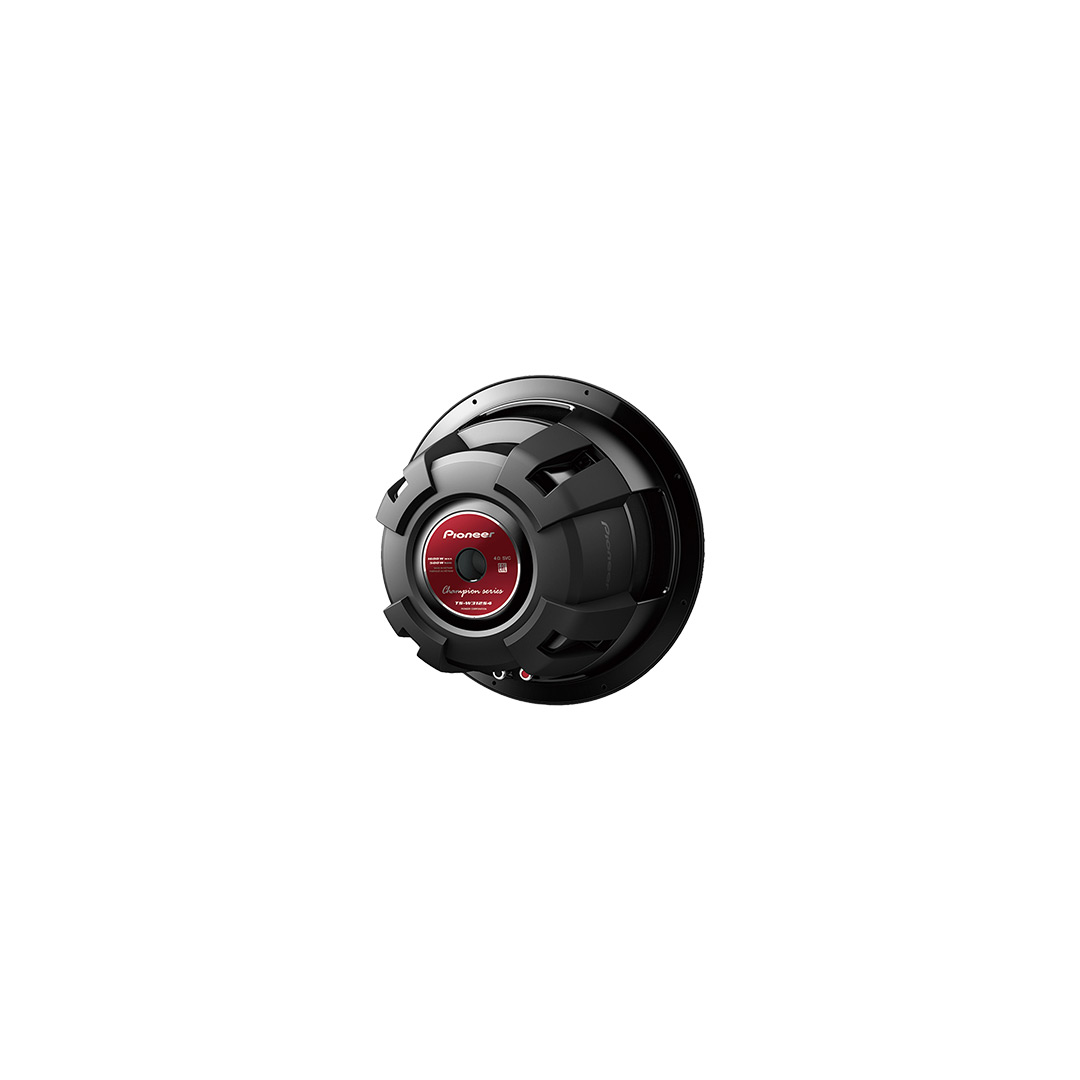

TS-W312S4 has high rigid IMPP composite a seamless cone with honeycomb. Double stacked large magnets and long voice coil with Aluminum bobbin.

Rigid Cone Construction

The TS-W312S4 combines a large and rigid center cap as well as a lightweight high rigid cone structure, this improves the output performance and reduces loss. The improved dual layer hybrid surround provides a lighter and more durable surround than traditional rubber compounds.

Reviewing Pioneer TS-W312S4

Highlights

• Champion Series.
• Component Subwoofer.
• Car Bass Subwoofer Speaker.

Power Output

• 1600 Watts maximum power Output.
• 500 Watts RMS power Output.

Audio Quality

• 4 Ohms impedance.
• Single voice coil.
• 20 Hz to 1.6 kHz frequency response.
• 92dB speaker sensitivity ( 1W / 1m).
• 38 Hz resonance frequency.

Structure

• Dual Layer (Elastic Polymer & Fibre).
• Ferrite Woofer Magnet Composition.
• Fiber reinforced elastic polymer surround.
• IMPP composite seamless cone with honeycomb.
• Aluminum bobbin.
• Steel basket design.

Extra

• 2540g magnet weight.
• 35.4 liters recommended enclosure.
• 12 inch (30cm) diameter.

We offer a wide variety of car subwoofers

What’s in the box

• 1 x Pioneer TS-W312S4 car subwoofer.
• 1 Self-adhesive foam strip.
• 8 Mounting screws.
• Instruction Manual.
